PRODUCT KEX nR LED

Home > PRODUCT > KEX nR LED

Non-sparking explosion-proof luminaires

  • Non-sparking explosion-proofEx nR IIC T6
  • Dust explosion-proofEx tb IIIC T85℃
  • IP (dust/water spray)IP66/67
  • Various usesFixed, movable, mobile

Characteristic

  • Power connection without a separate LED converter

  • Fixed, temporary, and mobile explosion-proof LED lighting fixtures

  • 18W: Max. 16 connections / LED brightness: 110Lm/W

  • Built-in protection circuit to protect LED chips

  • Use power multi-link up to 300W

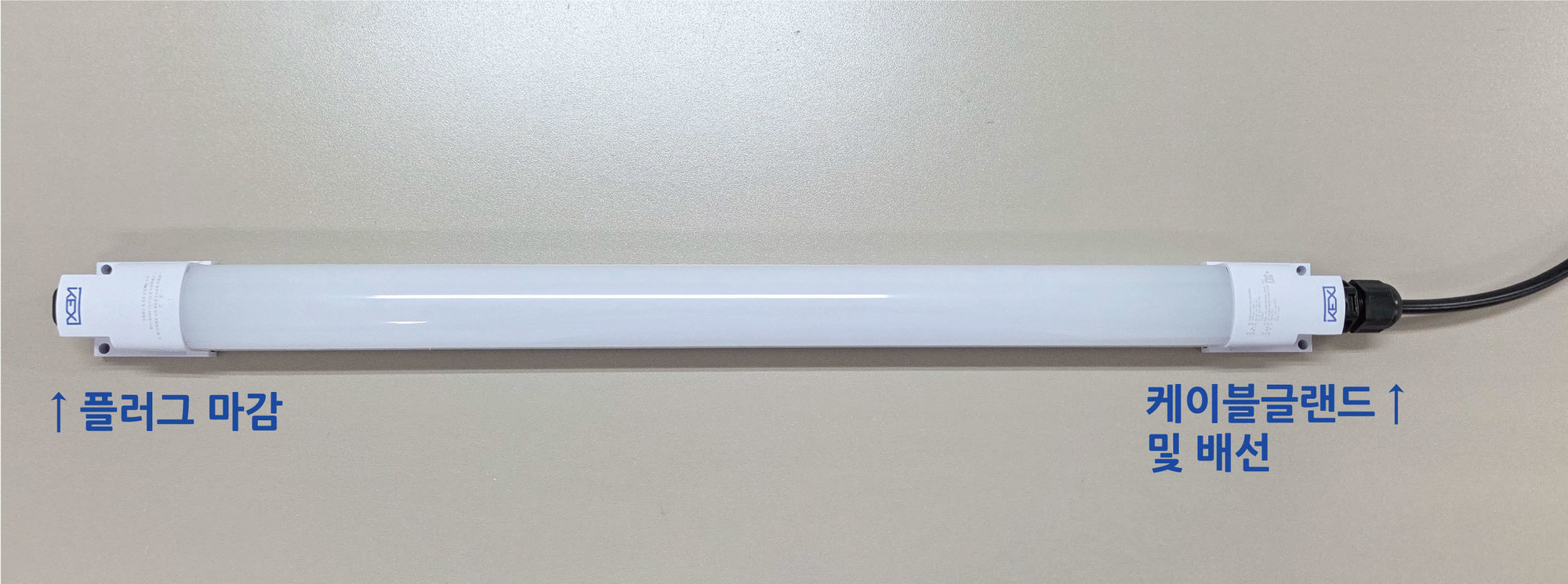

  • Cable gland and plug integrated

  • Replaceable anti-glare cover

  • AC Type / DC Type selectable

check

  • - Non-sparking nR LED
  • - Various installation methods
  • - 18W/ 110Lm/W
  • - AC Type / DC Type
  • - Bracket application (custom-made)

nR LED Specification

Usage of KEX nR LED light

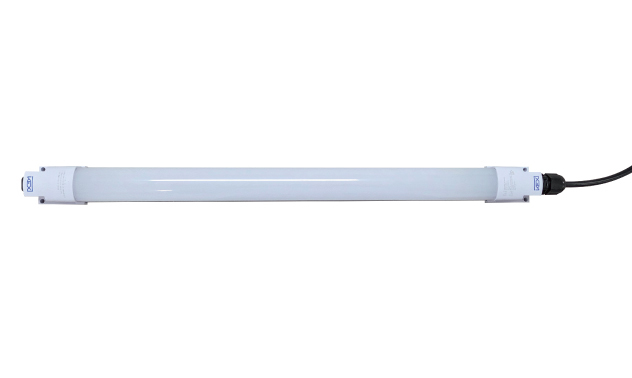

Individual use

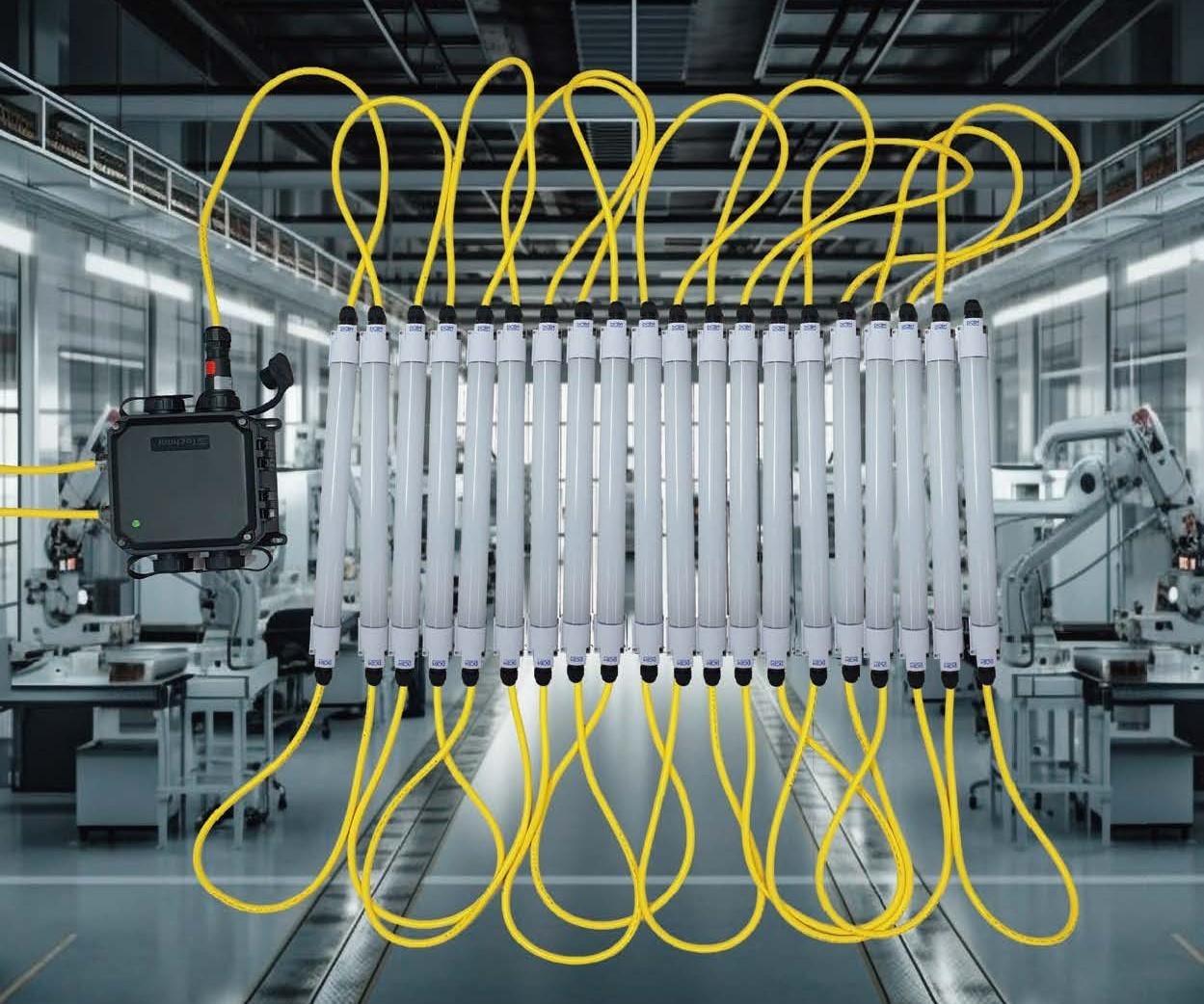

Use connection

Bracket connection

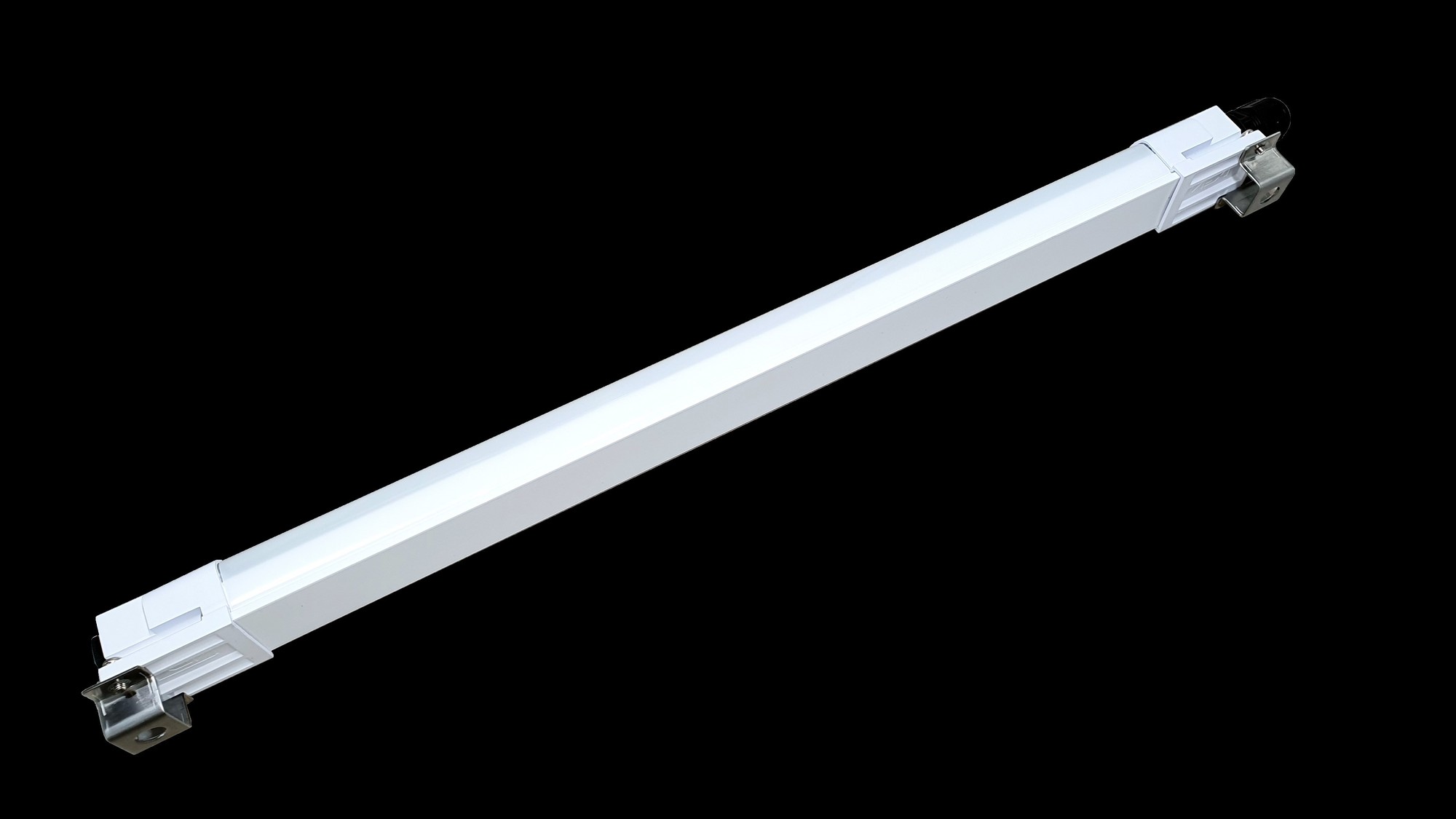

Single bracket Single bracket
Single bracket side Single bracket side

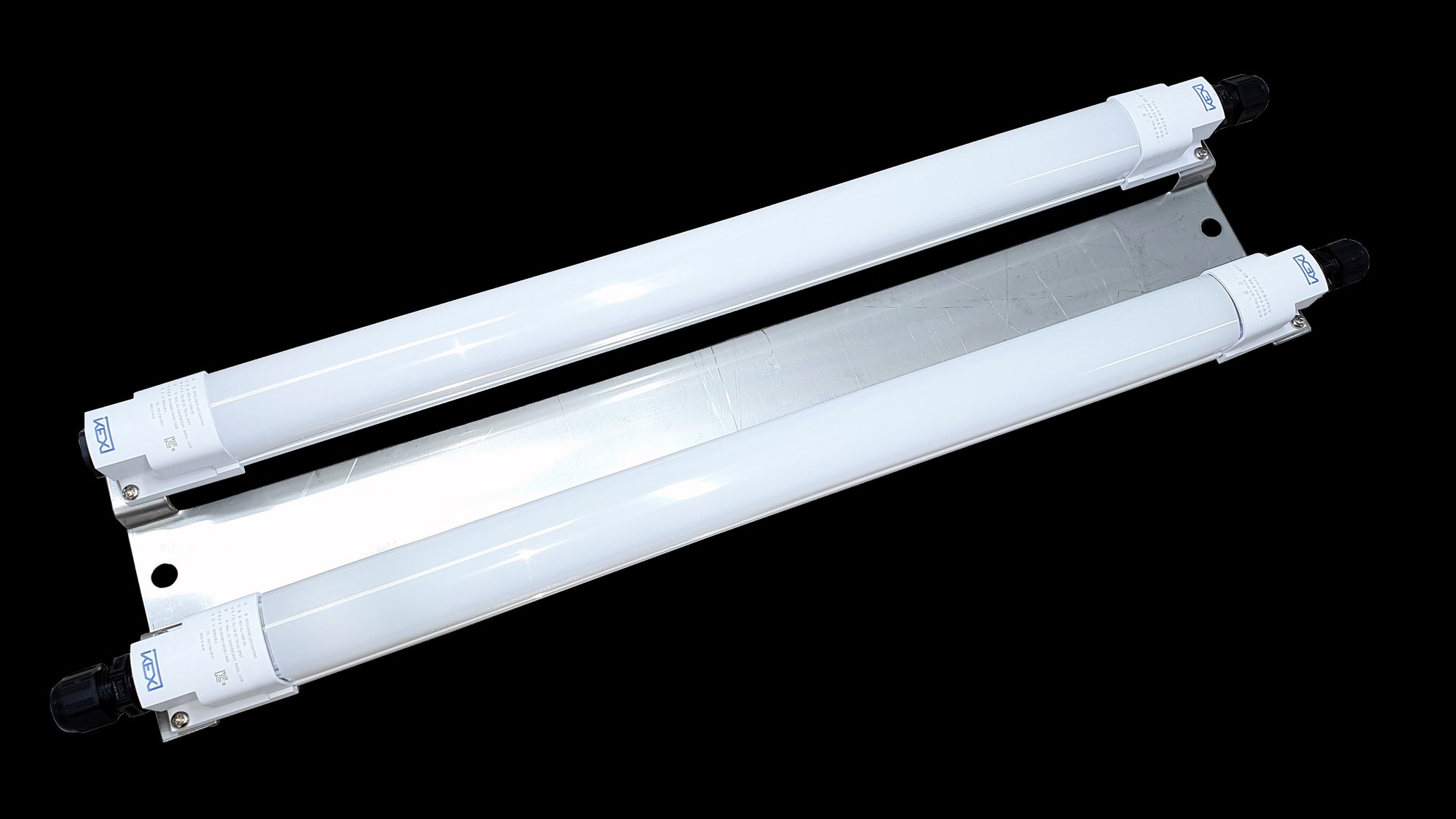

Dual bracket Dual bracket

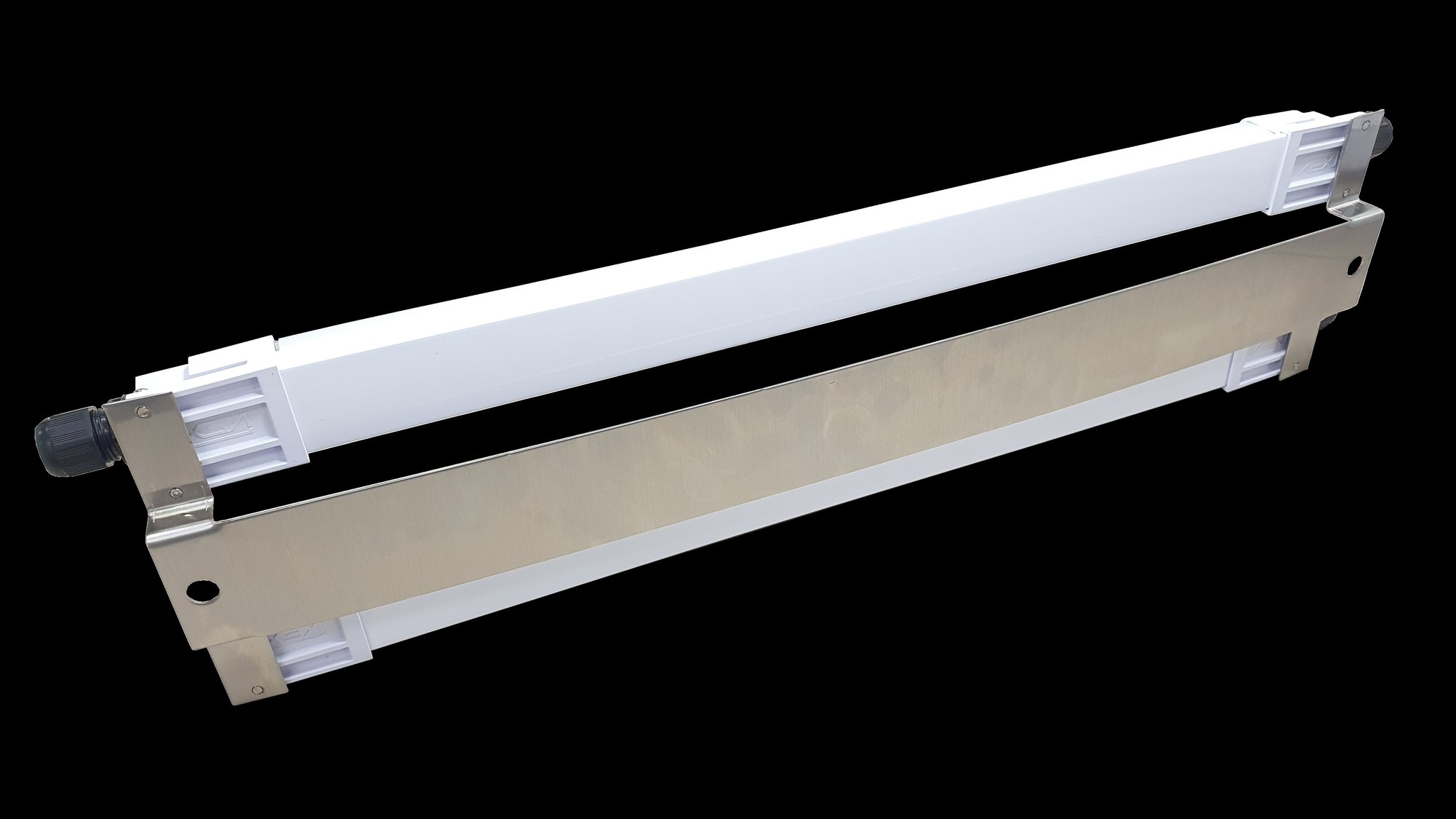

Dual bracket side Dual bracket side

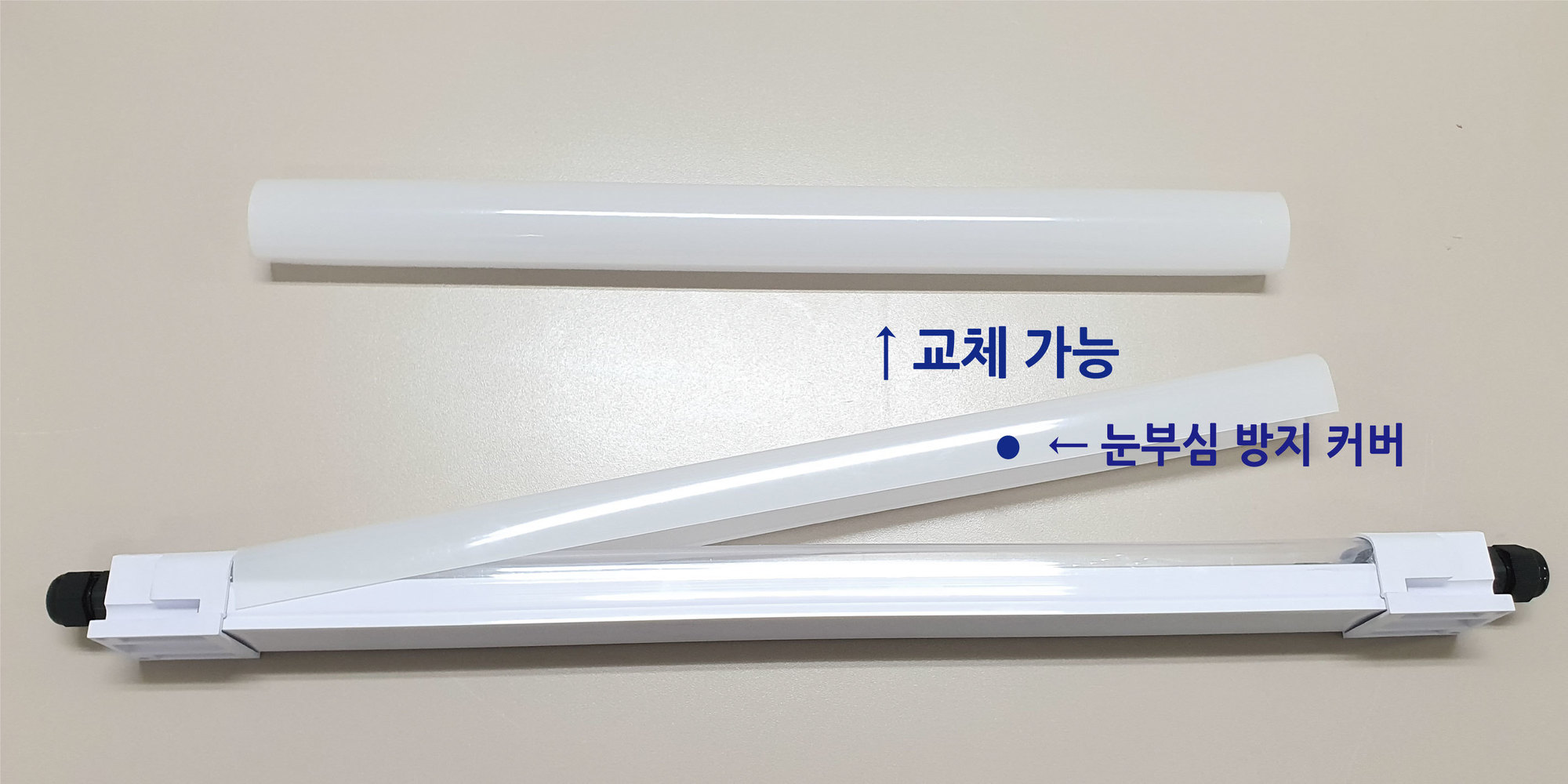

Anti-glare cover

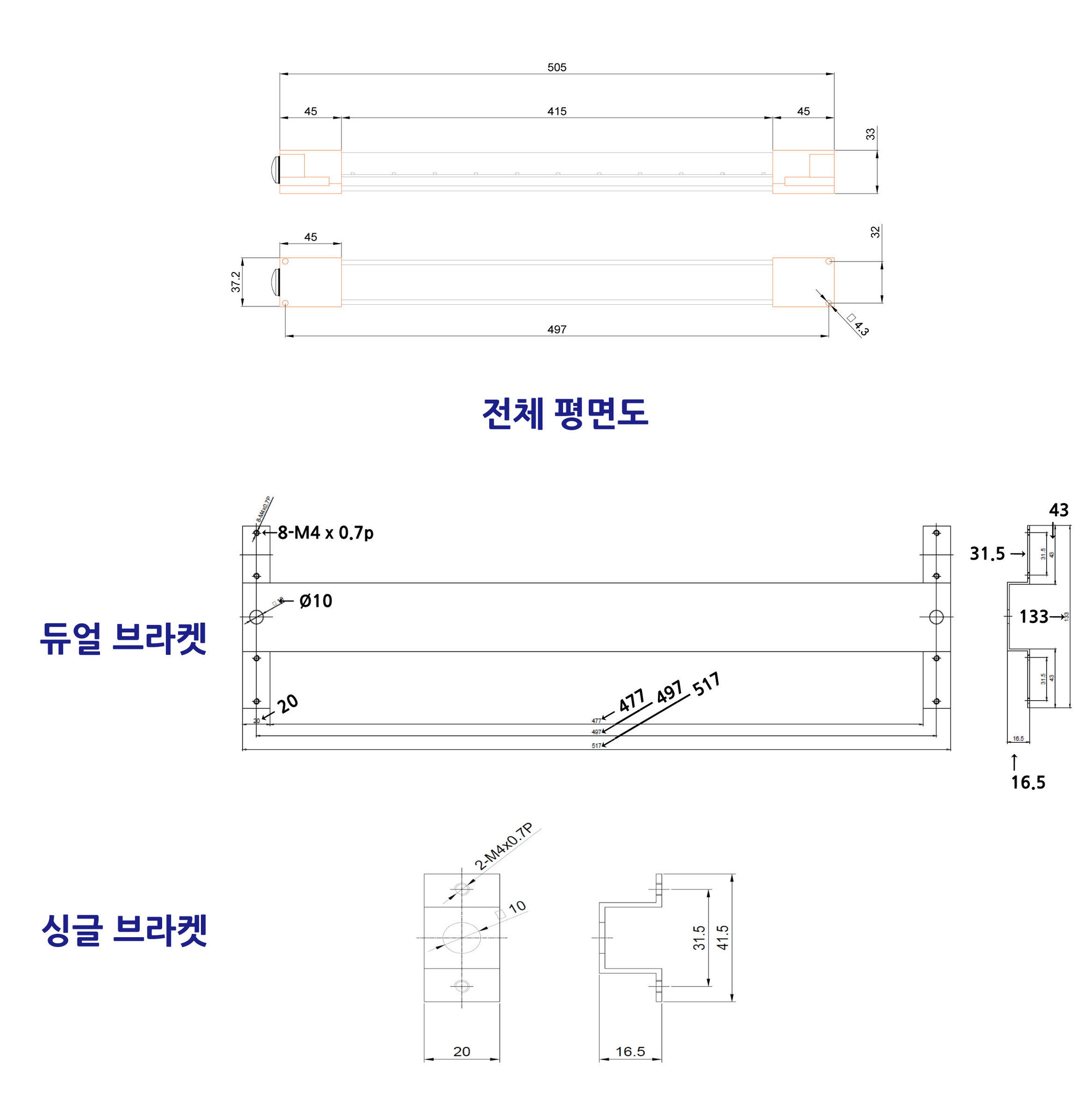

floor plan
