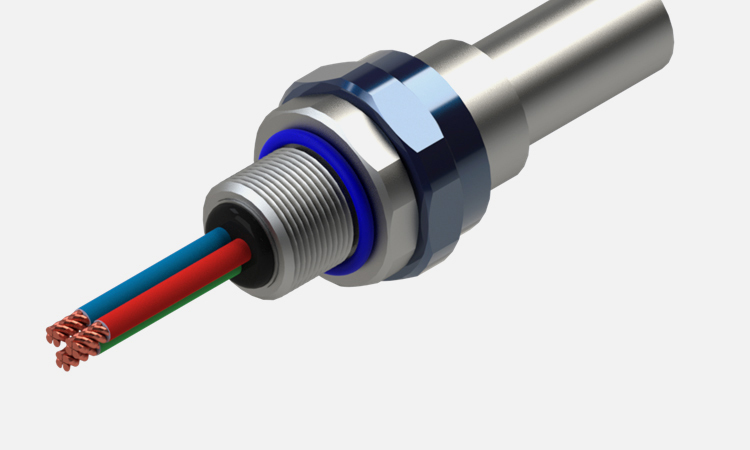

Explosion-proof cable sealing device
-
Pressure-proof explosion-proofEx db IIC Gb
-
Dust explosion-proofEx tb IIIC Db
-
Safety-enhanced explosion-proof structureEx eb IIC Gb
-
Waterproof protection structureIP66 / IP67
-
Ambient temperature for use-30 ℃~ 100 ℃
As regulations regarding the installation of explosion-proof equipment are strengthened, installation of a conduit sealing device is required for pressure-proof explosion-proof equipment (EX 'd').
Conventionally used packing type cable glands and sealing fittings cannot be installed in explosion-proof (Ex'd') equipment due to the strengthened standards.
In addition, in the case of existing compound type sealing devices, compound mixing is difficult and cracking occurs due to vibrations after hardening . Therefore, an epoxy type sealing device is required.
Conduit sealing devices shall seal the outer covering when the cable is effectively filled, or seal individual core units within the conduit
Related standard: KS C IEC60079-14
- “Explosion-Proof Equipment - Part 14: Design, Selection, and Installation of Electrical Equipment”
- - 10.6.2 Selection of cable gland
- - 9.4 Conduit System
Specification for KEX-SD
- KEX-SD
- Series
- 1-16C
- Size
- None / L
- Adaptor
- PF / NPT /M
- Entry Thread
- PF / NPT /M
- Adaptor Thread
- None / 316L
-
Material
None: SUS 304 / 316L : SUS 316L
| Model | Size | Thread for Entry& Adaptor | Thread length (B) | Hexagon size (D) | Total length (C) | Applicable cables | ||
|---|---|---|---|---|---|---|---|---|
| Basic model with one-line shape | Metric | PF,NPT | Same as 'L' shaped model | Core thickness (A) | Number of cores | |||
| KEX-SD-1-16C | 16C | M20 | 1/2” | 21 | 34 | 59 | 12 | 21 |
| KEX-SD-1-22C | 22C | M25 | 3/4” | 21 | 38 | 62 | 16 | 30 |
| KEX-SD-1-28C | 28C | M32 | 1” | 26 | 47 | 70 | 22 | 38 |
| KEX-SD-2-36C | 36C | M40 | 1-1/4” | 26 | 55 | 73 | 28 | 60 |
| KEX-SD-2-42C | 42C | M50 | 1-1/2” | 26 | 63 | 78 | 33 | 90 |
| KEX-SD-2-54C | 54C | M63 | 2” | 26 | 75 | 82 | 43 | 146 |
| ELBOW Adapter model(90Degree) | Total length (C) | Overall height (E) | ||||||
| KEX-SD-1-16C-L | 16C | M20 | 1/2” | 21 | 95 | 60 | 12 | 21 |
| KEX-SD-1-22C-L | 22C | M25 | 3/4” | 21 | 100 | 65 | 16 | 30 |
| KEX-SD-1-28C-L | 28C | M32 | 1” | 26 | 120 | 80 | 22 | 38 |
| KEX-SD-2-36C-L | 36C | M40 | 1-1/4” | 26 | 135 | 90 | 28 | 60 |
| KEX-SD-2-42C-L | 42C | M50 | 1-1/2” | 26 | 150 | 100 | 33 | 90 |
| KEX-SD-2-54C-L | 54C | M63 | 2” | 26 | 170 | 120 | 43 | 146 |

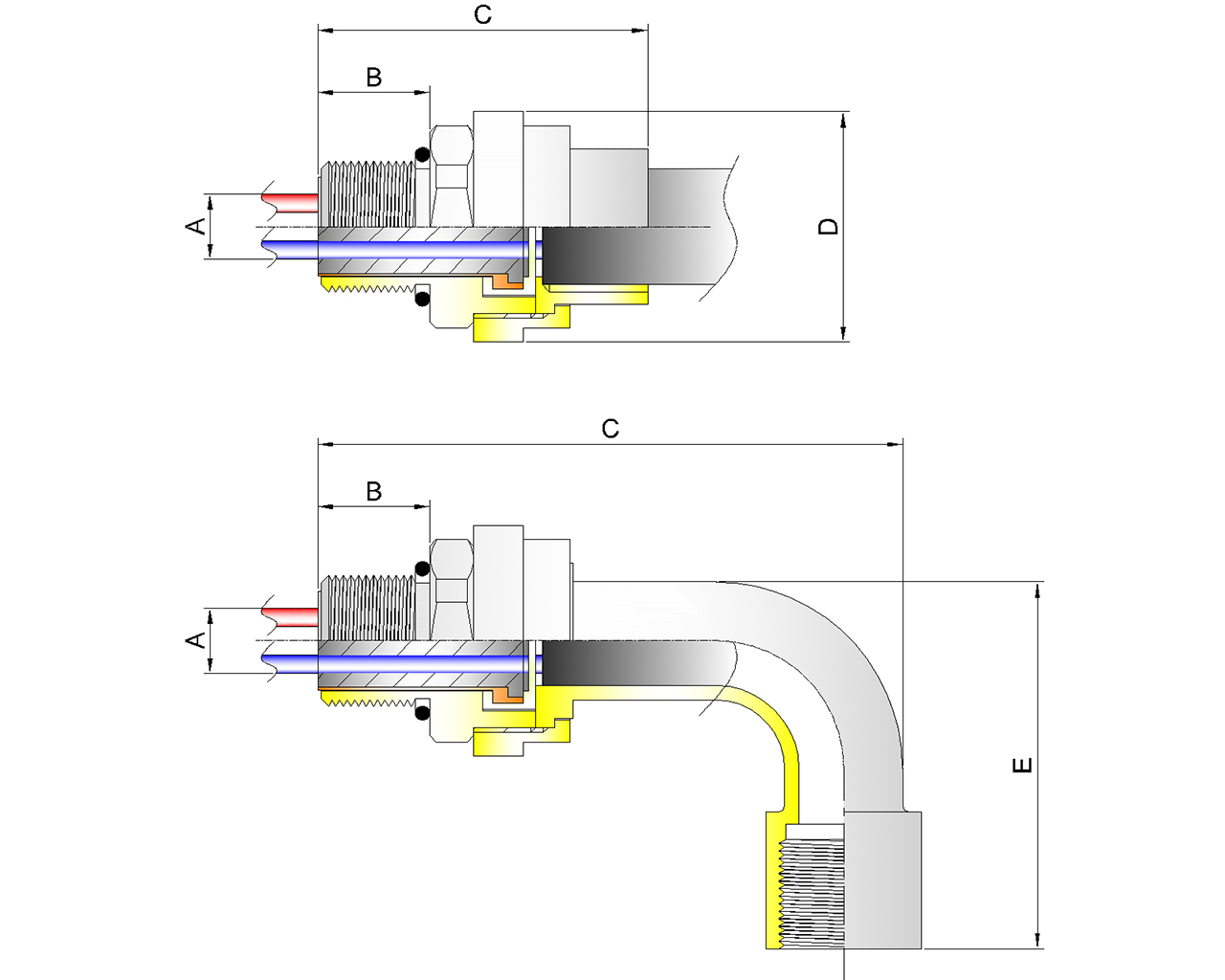

Drawing for KEX-SD
Accessary for KEX-SD
Epoxy Cartridge (Liquid Type)
Product Introduction
- Model :
- KX-E-GUN
- Color :
- Black
- Capacity :
- 50ml

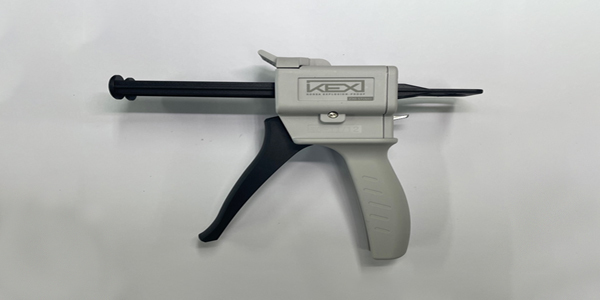

Applicator, Filling Tool (Gun Type)
Product Introduction
- Model :
- KX-E-GUN
- Applicable cartridge :
- 50ml 1:1

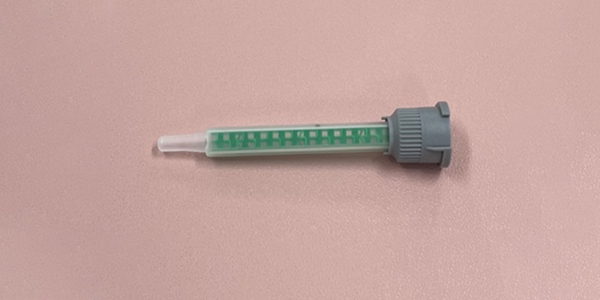

Mixing Nozzle
Product Introduction
- Model :
- KX-E-Nozzle
- Applicable cartridge :
- 50ml 1:1

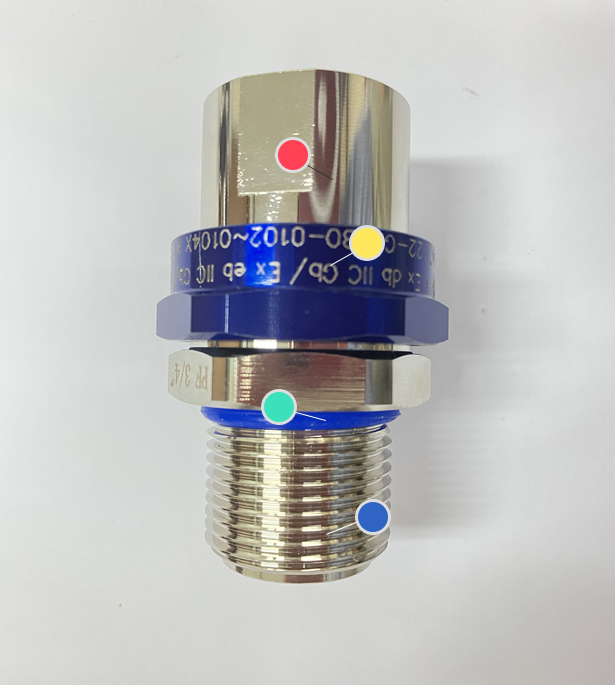

Components of KEX-SD
Component Guide
- AdaptorPF, M , NPT
- Color Union
- Silicon “O” Ring
- Entry threadPF, M, NPT

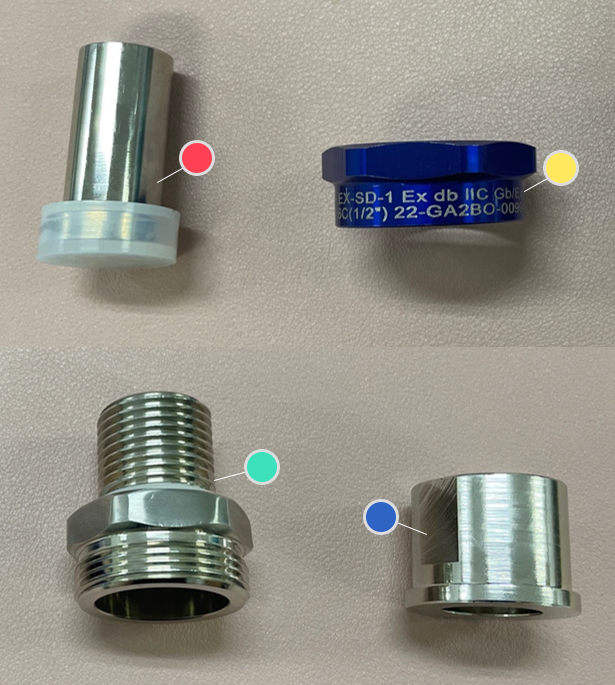

Component Guide
- Epoxy Cone & Silicon cap
- Union
- Entry Union
- Cable pipe Adaptor

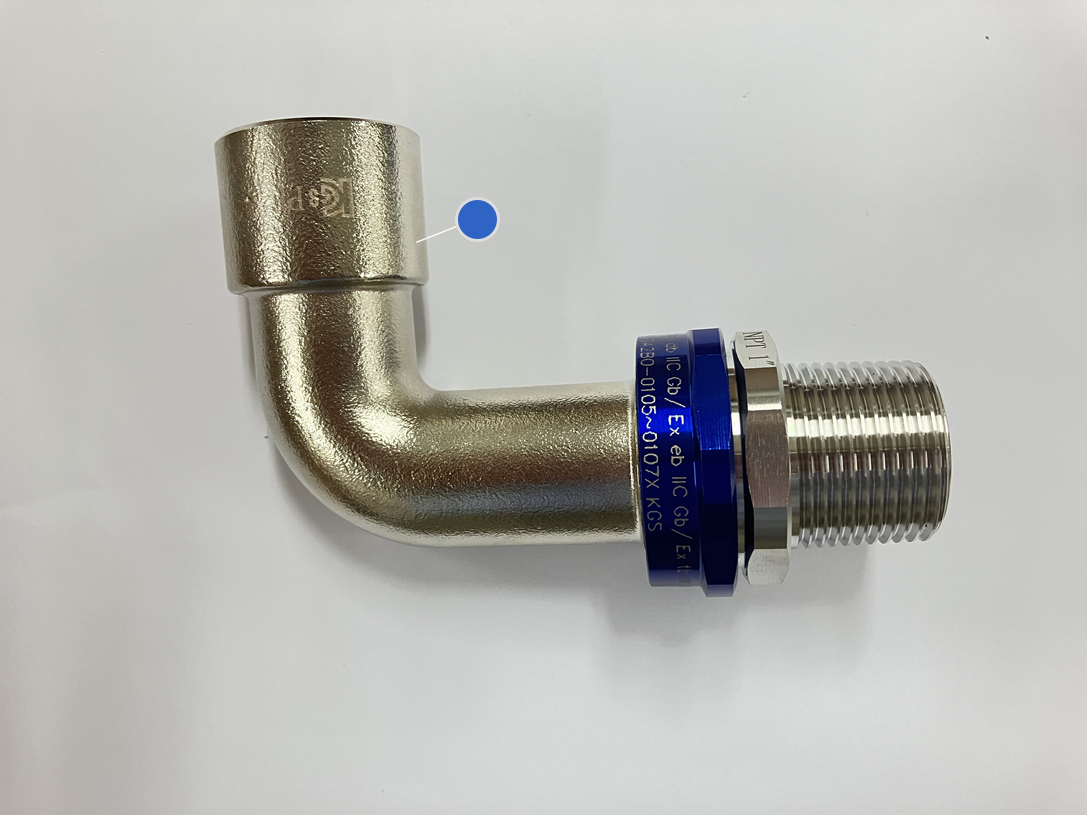

Component Guide
- ELBOW Adaptor

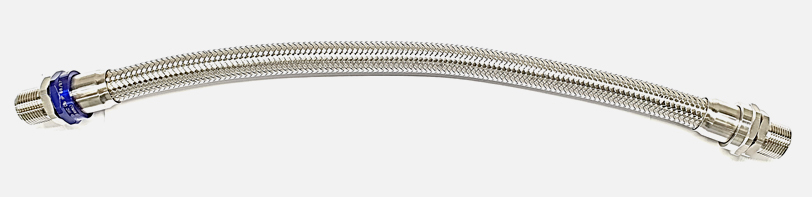

KEX-SD with Flexible conduit
Sealing device with flexible conduit tube
Length : 500mm , 700mm , 1,000mm, Custom order
Tube : Auto drain welding type (stainless steel )
Type of end : Ex-Sealing device , Connector , Union connector
- KEX-SD
- Series
- 1-16C
- Size
- FC
- Flexible
- 500/700/1000
- Length
- PF / NPT /M
- Connector
Thread 1
- PF / NPT /M
- Connector
Thread2
- None / 316L
-
Material
None: SUS 304
/ 316L : SUS 316L
| Model | Thread type & Size | Length | |
|---|---|---|---|
| Metric | PF, NPT | ||
| KEX-SD-1-16C-FC | M20 | 1/2” | 500mm 700mm 1000mm & custom size |
| KEX-SD-1-22C-FC | M25 | 3/4” | |
| KEX-SD-1-28C-FC | M32 | 1” | |
| KEX-SD-2-36C-FC | M40 | 1-1/4” | |
| KEX-SD-2-42C-FC | M50 | 1-1/2” | |
| KEX-SD-2-54C-FC | M63 | 2” | |
