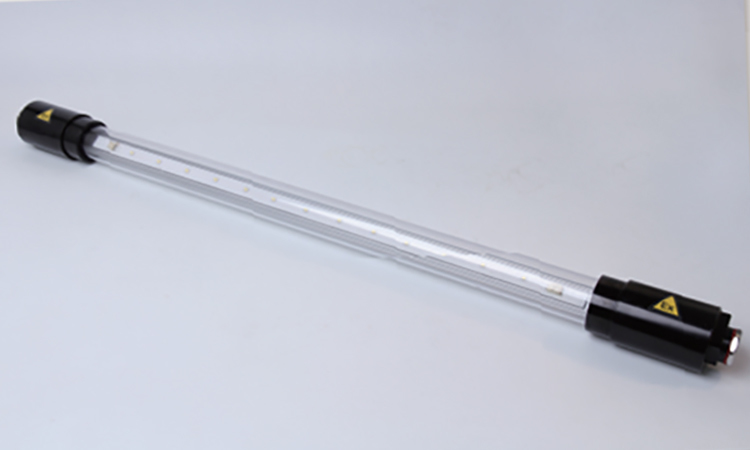

Tubular LED

  • Flame proofEx db IIC T6
  • Dust proofEx tb IIIC T85℃
  • IP protectionIP66/67/68
  • Impact resistanceIK10

FEATURE

  • The first Korean patented explosion-proof LED, developed for hazardous area

  • Durable polycarbonate housing for maximum safety

Key specification

  • - IP66/67/68
  • - IK10
  • - High efficiency (120 lm / W)
  • - EMC certified
  • - Ultra-light & Slim ( min. 860g @ Ø40 )
  • - Applicable for fixed and portable
  • - Chemical resistance, corrosion resistance

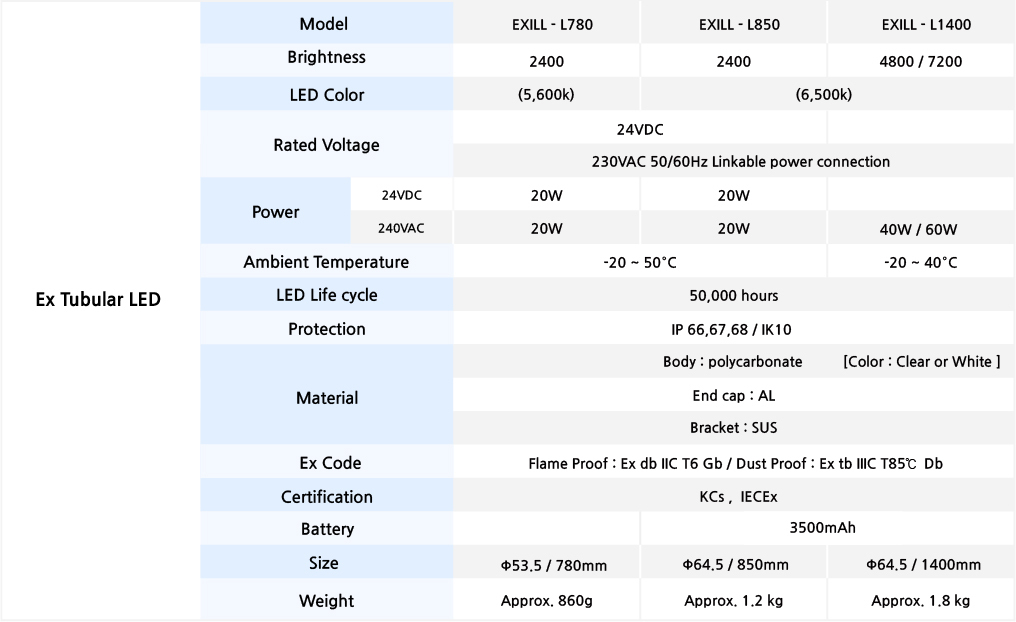

Tubular LED Specification

Usage of KEX Tubular LED light

Safety feature

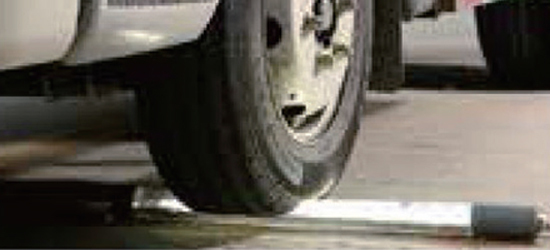

Strong impact resistance with IK10 rating Strong impact resistance with IK10 rating

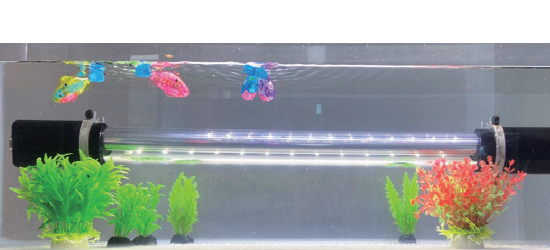

Powerful dustproof and water-resistant with IP68 rating Powerful dustproof and water-resistant with IP68 rating

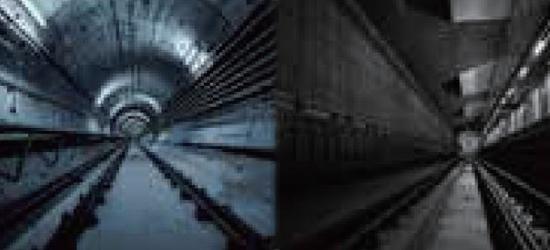

Lightweight and slim design allows use even in cramped environments Lightweight and slim design allows use even in cramped environments

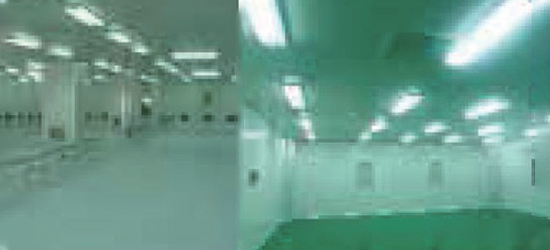

It is a material with strong chemical and corrosion resistance and can be used in special processes such as semiconductors, food, and pharmaceuticals. It is a material with strong chemical and corrosion resistance and can be used in special processes such as semiconductors, food, and pharmaceuticals.

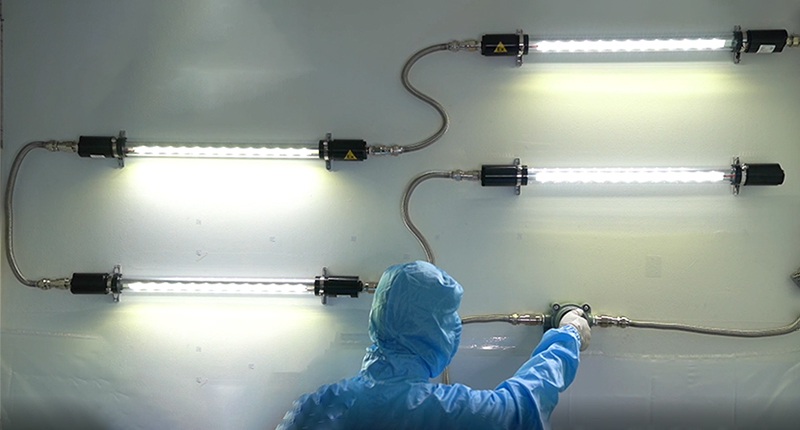

Installation and Detail

Test
