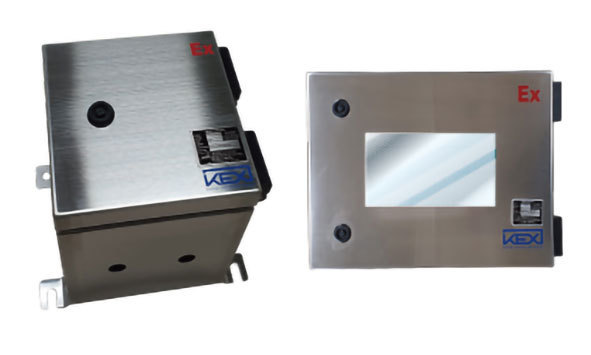

KEx Junction box KJB Series
Increased Safety Junction Box with Stainless Steel for Explosive Atmosphere
Ex eb IIC T6 / Ex tb IIIC T85 ℃
Ingress Protection : IP66
Material : STS 304 / 316L
Applied Standard : IEC 60079-0, 7, 11
Ex e & i connection
Sight Glass(Optional)

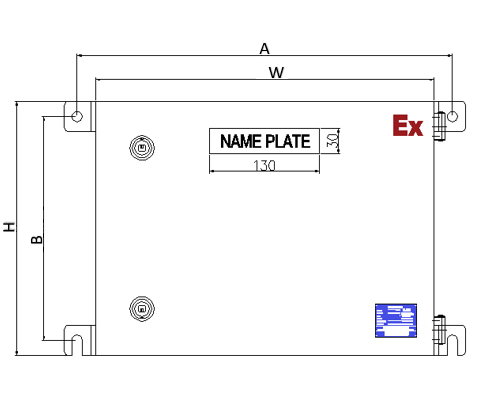

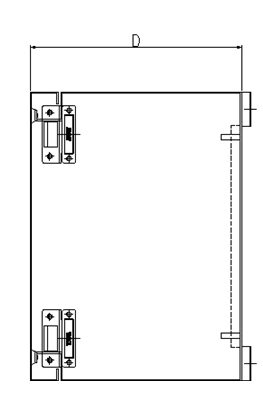

Specifications & Dimension
| Model | Width (W) | Height(H) | Depth(D) | Mount1(A) | Mount2(B) | InnerPlate |
|---|---|---|---|---|---|---|
| KJB-2020 | 200 | 200 | 220 | 244 | 164 | 130X130 |
| KJB-3040 | 400 | 300 | 220 | 444 | 264 | 230X330 |
| KJB-4050 | 500 | 400 | 220 | 544 | 364 | 330X430 |
| KJB-4060 | 600 | 400 | 220 | 644 | 364 | 330X530 |
| KJB-4070 | 700 | 400 | 220 | 744 | 364 | 330X630 |
