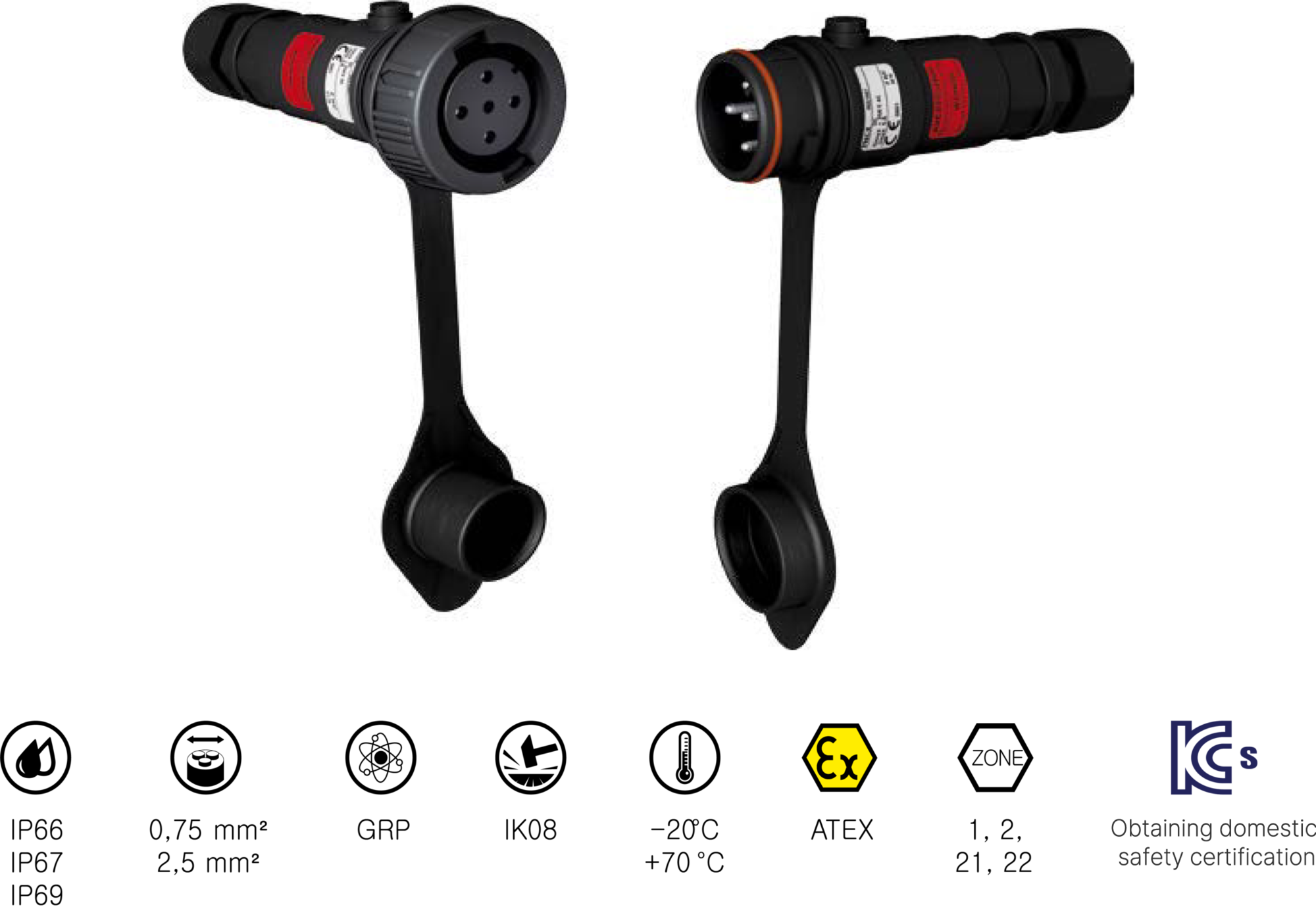

CONNECTOR PNCX
Ex eb ⅡC T6 Gb
Ex tb ⅢC T72℃ Db
-20 °C ≤ Ta ≤ +70 °C
IECEx LCIE 16.0001X/LCIE 16 ATEX 3001X
Korean Ex-certification ( KCs )
OTHER FEATURES
| Impulse withstand voltage | 5 kV |
|---|---|
| Contact resistance | ‹ 2 mΩ |
| Casing/insulator | Glass reinforced thermoplastics UL94 V-0 |
| Load cycles | › 2 000 cycles |
| Salt mist | 50 000 hours |
STANDARDS
| International and European IEC/EN standards | 61984, 60529, 62262, 60079-0, 60079-7 and 60079-31 |
|---|---|
| Protection mode | e, tb |
REFERENCES AND ACCESSORIES
| name | number | image | type1 | type2 | CABLE OUTER Ø |
|---|---|---|---|---|---|
| SOCKET-OUTLET female (with lock nut) PNCX |
06E4007 |  |
250 V AC | 4P+T | |
| INLET male (with lock nut) PNCX |
06E8007 |  |
250 V AC | 4P+T | |
| COUPLER SOCKET female PNCX |
06E3007 |  |
250 V AC | 4P+T | 10-14 mm* |
| PLUG male PNCX |
06E1007 |  |
250 V AC | 4P+T | 10-14 mm* |
* Ø Smaller diameters on-request.
OPTIONS
| name | number | image | |
|---|---|---|---|
| PROTECTIVE CAPS | Socket-outlet cap | 01EA125 |  |
| Inlet cap | 01EA126 | ||
| ADAPTER PLATE FOR DXN1 ACCESSORIES (SEE PAGE 231) |
- | 06E8007 |  |
Coupler socket and plug caps are fitted as standard.
DRAWINGS AND DIMENSIONS
| A | B | C |
|---|---|---|
| 185 | 45 | 45 |
